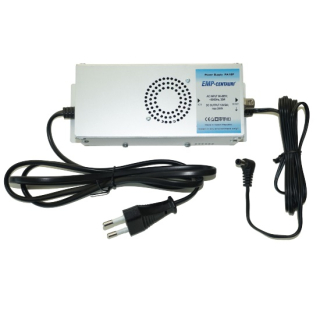

Product description:
Ideal for use with antenna devices like amplifiers, multiswitches, in communications, industrial automation etc.
General Specifications:
Switching frequency: 130 kHz
Protection Class: Class II
Start up time: 400 ms
Over load protection: Zener diode clamp
Short Circuit and Temperature protection: Auto recovery
Case Material: Aluminium
Operating temperature: -40 to +70 °C
Storage temperature: -40 to +70 °C
Max Case temperature: +80 °C
Weight: 350 g
Dimensions (L x W x H): 150 x 60 x 50 mm
MTBF > 100 000 hrs (IEC 62380)
Input Specifications:
Input Voltage Range: 90-265 V AC
Current (Full Load): 115V AC: 260 mA 230VAC: 130 mA
Leakage Current: 115 VAC: 0.1 mA 264 VAC: 0.2 mA
Internal Fuse: quick acting, type 3 A
Input Dissipation: 115 / 230 VAC: 0.4 W
Output Specifications:
Output DC voltage: 12V
Voltage accuracy at full load: ±4 %
Voltage accuracy at 20% load: ±6 %
Ripple & Noise: 150mVp-p
Output DC Current: 2.0 A max. (PA12 2A)
Shell Material: Metal case / Aluminium base
Overview of available types:
- PA12 2A: voltage 12V, current up to 2A
- PA18 1,5A: voltage 18V, current up to 1.5A
Anleitung EMP Centauri PA12 2A Netzteil
EMP-Centrauri Produktkatalog
| Empfang: |

|
| Artikelgewicht: | 1,00 Kg |
| Abmessungen (LxBxH) ( Länge × Breite × Höhe ): | 16,00 × 6,40 × 5,00 cm |
